Glacier DU, DU-B & DP4 technical summary

To view the material summary of DU, DU-B and DP4, click here

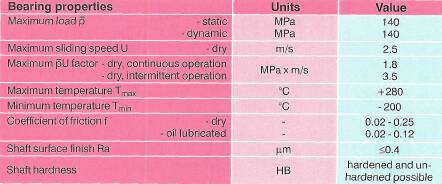

DU bearing material specifications

Usage
dry very good
oil lubricated good
grease lubricated fair
water lubricated fair
process fluid lubricated fair
Cylindrical bushes
Flanged bushes
Thrust washers
Flanged washers
Strips

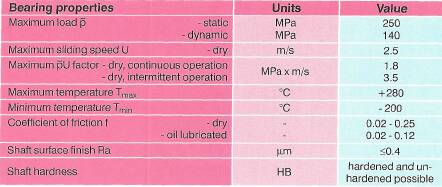

DU-B bearing material specifications
Usage
dry very good
oil lubricated good
grease lubricated fair
water lubricated good
process fluid lubricated fair
Cylindrical bushes
Flanged bushes
Strips

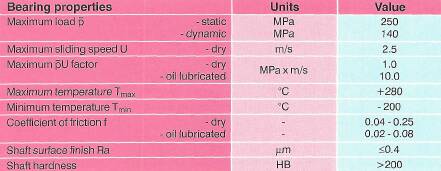

DP4 bearing material specifications
Usage
dry good
oil lubricated very good
grease lubricated good
water lubricated fair
process fluid lubricated good
Flanged washers
Strips
Cylindrical bushes
Flanged bushes
Thrust washers
Click here to return to the Glacier DU, DU-B and DP4 summary page.
The above information is the sole property of GGB (Glacier Garlock Bearings)
